Pure Sine Wave vs Modified Sine Wave
Produces the same clean AC waveform as grid power. Safe for all electronics and appliances.
Compatible with: All motor-driven appliances (fridges, pumps, AC units), sensitive electronics, medical equipment, variable-speed tools, laptops, LED dimmers, audio equipment.
Cost: $80–$1,500+ depending on wattage. Worth every dollar.
Produces a stepped approximation of AC power — cheaper to build, but problematic with many loads.
Will damage or not work with: Variable-speed motors (fridge compressors), laser printers, some battery chargers, medical devices, audio equipment (hum), LED dimmers, many CPAP machines.
Cost: $30–$200. The savings aren't worth the risk.
How to Size an Inverter
An inverter must handle two load scenarios: continuous watts and surge/startup watts.
Continuous Rating
The inverter must handle the total wattage of everything running at the same time. Add up the watts of your appliances likely to run simultaneously:
Fridge (45W) + Laptop (65W) + Lights (30W) + Water pump (60W) = 200W continuous → 300W+ inverter
Surge/Startup Rating
Motors draw 3–7× their rated watts at startup. A fridge compressor rated at 150W may pull 600–900W for 1–3 seconds on startup. Your inverter's surge rating must handle this:
Fridge surge (600W) + other loads (200W) = 800W surge needed → 1,000W+ inverter
Inverter Size Guide by Use Case
| Inverter Size | Use Case | Can Run | Cannot Run |
|---|---|---|---|
| 300–500W | Van / small RV | Laptop, phone, LED TV, fan, small appliances | Microwave, AC unit, hair dryer |
| 1,000–1,500W | RV / cabin standard | All above + coffee maker (briefly), AC fridge | Microwave at full power, hair dryer, AC unit |
| 2,000–3,000W | RV full-timer / cabin | All above + microwave, hair dryer, small AC | Full-size AC unit (1.5+ tons), electric dryer |
| 4,000–5,000W | Home backup / off-grid | All above + window AC, well pump, power tools | Central AC, electric range, electric water heater |
| 5,000–8,000W | Whole-home off-grid (48V) | Almost anything except heavy HVAC loads | Electric dryer, large electric range (at full power) |
Types of Inverters
Not all inverters are created equal. Beyond waveform quality, inverters differ in what functions they combine into one unit. Here are the main categories:
Converts battery DC to AC. That's it — no charging, no solar input.
- Simplest and cheapest option
- Needs a separate charge controller and battery charger
- No automatic transfer switch — if you have a generator, you switch manually
Best for: Small van/RV builds, simple setups where you only use solar + battery.
Examples: Renogy 1000W/2000W PSW, Victron Phoenix
Combines an inverter, battery charger, and automatic transfer switch in one unit.
- Inverter — converts battery DC to AC output
- Battery charger — charges batteries from AC input (generator or shore power)
- Transfer switch — automatically switches between battery and AC input with near-zero interruption
Best for: RVs with shore power, cabins with a generator, any system that has an AC input source.
Examples: Victron MultiPlus-II, Schneider Conext XW+, Magnum MS-PAE
Everything in one box: inverter + charger + transfer switch + built-in MPPT charge controller.
- Solar panels connect directly to the inverter — no separate charge controller needed
- Single unit replaces 3–4 separate components
- Usually includes LCD display and WiFi/app monitoring
- Simplifies wiring and reduces failure points
Best for: Home off-grid systems, large cabin builds, anyone who wants simplicity.
Examples: Growatt SPF 5000ES, EG4 6000XP, Sol-Ark 12K
Designed for grid-connected solar systems. Converts solar DC directly to AC and feeds it into the grid — no batteries.
- Synchronizes with grid frequency and voltage
- Shuts down during a grid outage (anti-islanding safety)
- Highest efficiency (96–99%) since there's no battery conversion loss
- Cannot work off-grid — requires grid to operate
Best for: Grid-connected homes that want to reduce their electric bill, net metering setups.
Examples: Enphase IQ8 (micro), SolarEdge SE, SMA Sunny Boy
- Van/small RV (solar only): Standalone inverter + separate MPPT controller. Cheapest, simplest.
- RV with shore power / cabin with generator: Inverter/charger. Auto-switches between battery and AC input.
- Home off-grid: All-in-one hybrid. Fewer components, integrated monitoring, built-in MPPT.
- Grid-connected home: Grid-tie or hybrid inverter. Reduce your bill, add batteries for backup.
Top Inverter Picks
🇺🇸 Pricing on Amazon USDisclosure: Amazon links are affiliate links. We may earn a commission at no extra cost to you.
Victron Energy MultiPlus 24/500/10-16
- 430W continuous, 900W surge
- 24V input
- 10A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo

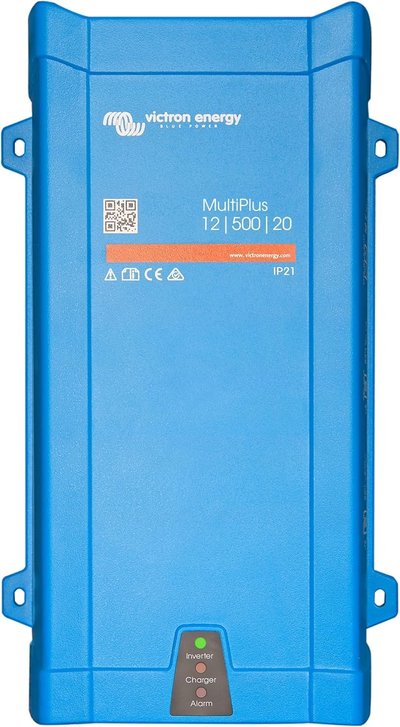

Victron Energy MultiPlus 12/500/20-16
- 430W continuous, 900W surge
- 12V input
- 20A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo

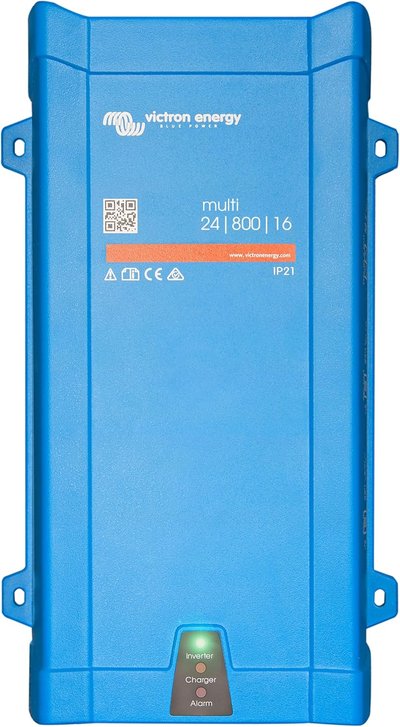

Victron Energy MultiPlus 24/800/16-16
- 700W continuous, 1,600W surge
- 24V input
- 16A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo
Victron Energy MultiPlus 12/800/35-16
- 700W continuous, 1,600W surge
- 12V input
- 35A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo
Renogy 1000W Pure Sine Wave
- 1,000W continuous, 2,000W surge
- 12V input
- 90% peak efficiency

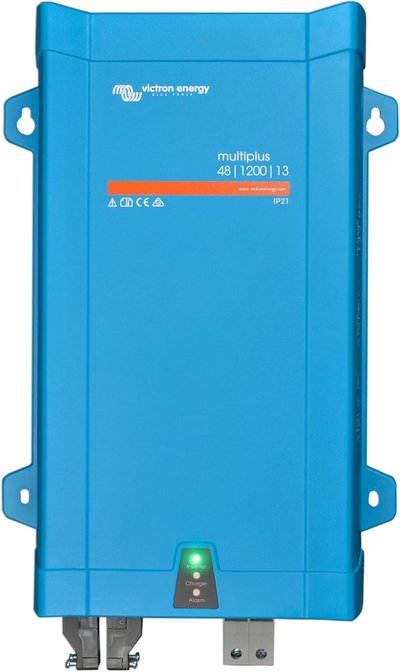

Victron Energy MultiPlus 48/1200/13-16
- 1,000W continuous, 2,400W surge
- 48V input
- 13A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo
Victron Energy MultiPlus 24/1200/25-16
- 1,000W continuous, 2,400W surge
- 24V input
- 25A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo

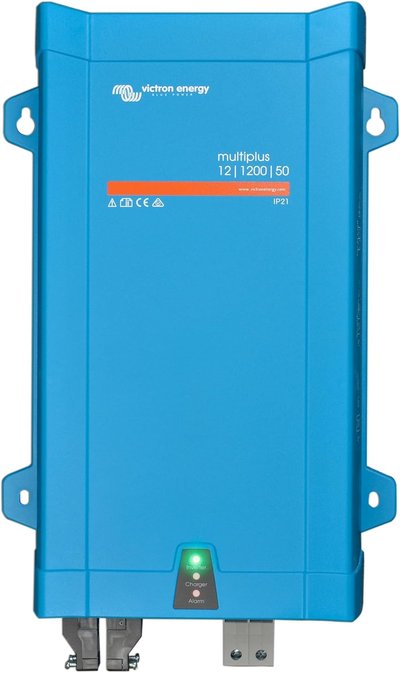

Victron Energy MultiPlus 12/1200/50-16
- 1,000W continuous, 2,400W surge
- 12V input
- 50A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo
Victron Energy Phoenix 12/1200
- 1,200W continuous, 2,400W surge
- 12V input
- 93% peak efficiency
- VE.Direct monitoring

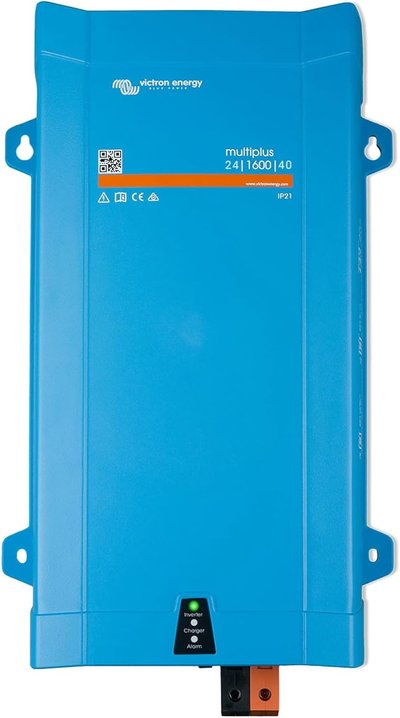

Victron Energy MultiPlus 24/1600/40-16
- 1,300W continuous, 3,000W surge
- 24V input
- 40A charger + transfer switch
- VE.Direct monitoring
- Inverter/charger combo
Anern 1500W 24V Hybrid
- 1,500W continuous, 3,000W surge
- 24V input
- Built-in 80A MPPT controller
- All-in-one hybrid
Renogy 2000W Inverter Charger
- 2,000W continuous, 6,000W surge
- 12V input
- 65A charger + transfer switch
- 90% peak efficiency
- Inverter/charger combo
Renogy 2000W Pure Sine Wave
- 2,000W continuous, 4,000W surge
- 12V input
- 90% peak efficiency
Renogy Renogy Inverter P2 3000
- 3,000W continuous, 6,000W surge
- 12V input
- 95% peak efficiency
Victron Energy MultiPlus-II 48/3000
- 3,000W continuous, 6,000W surge
- 48V input
- 35A charger + transfer switch
- 94% peak efficiency
- VE.Direct monitoring
- Inverter/charger combo
Growatt SPF 3000TL LVM-48P
- 3,000W continuous, 6,000W surge
- 48V input
- 120A charger + transfer switch
- Built-in 80A MPPT controller
- 93% peak efficiency
- WiFi monitoring
- All-in-one hybrid

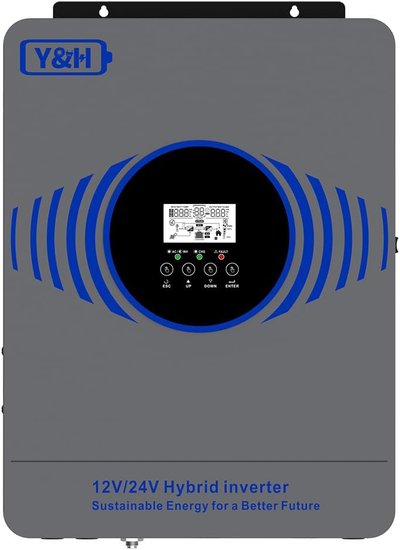

Y&H SUN-4.2K12V/24V-HV-EU
- 4,200W continuous, 8,400W surge
- 12/24V Auto input
- Built-in 100A MPPT controller
- WiFi+RS485 monitoring
- All-in-one hybrid

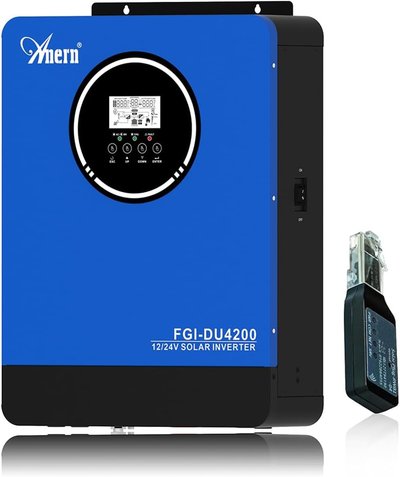

Anern 4.2K Dual Voltage Hybrid
- 4,200W continuous, 8,400W surge
- 12/24V Auto input
- Built-in 100A MPPT controller
- RS485 monitoring
- All-in-one hybrid

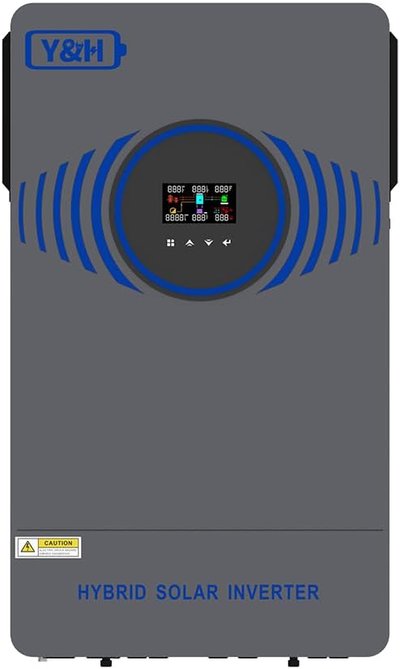

Y&H 4.2KW 24V Hybrid
- 4,200W continuous, 8,400W surge
- 24V input
- Built-in 120A MPPT controller
- WiFi+RS485 monitoring
- All-in-one hybrid
Growatt SPF 5000ES
- 5,000W continuous, 10,000W surge
- 48V input
- 100A charger + transfer switch
- Built-in 22A MPPT controller
- 93% peak efficiency
- WiFi monitoring
- All-in-one hybrid

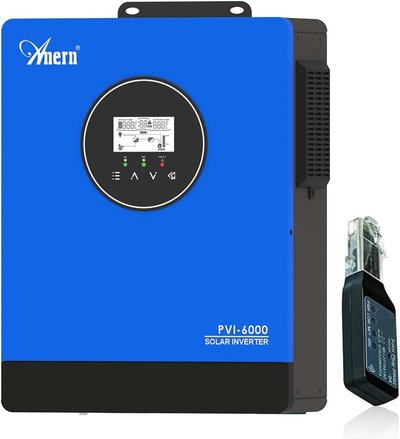

Anern 6KW PVI Solar Pump Inverter
- 6,000W continuous, 12,000W surge
- High Voltage input
- Built-in 36A MPPT controller
- All-in-one hybrid
Y&H 6.2KW 48V Hybrid
- 6,200W continuous, 12,400W surge
- 48V input
- Built-in 120A MPPT controller
- WiFi+RS485 monitoring
- All-in-one hybrid

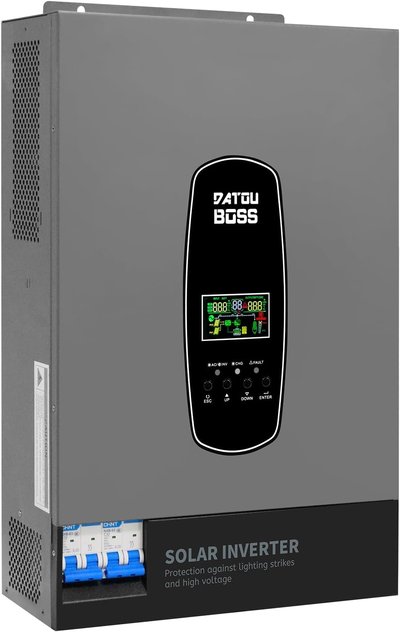

DATOUBOSS 6200W 48V Hybrid
- 6,200W continuous, 12,400W surge
- 48V input
- Built-in 120A MPPT controller
- All-in-one hybrid
Growatt SPH 10000TL-HU
- 10,000W continuous, 10,000W surge
- 48V input
- 200A charger + transfer switch
- Built-in 22A MPPT controller
- 97% peak efficiency
- WiFi+RS485 monitoring
- All-in-one hybrid
Growatt SPH 10000TL-HU
- 10,000W continuous, 10,000W surge
- 48V input
- 200A charger + transfer switch
- Built-in 22A MPPT controller
- 97% peak efficiency
- WiFi+RS485 monitoring
- All-in-one hybrid
Growatt SPH 10000TL-HU
- 10,000W continuous, 10,000W surge
- 48V input
- 200A charger + transfer switch
- Built-in 22A MPPT controller
- 97% peak efficiency
- WiFi+RS485 monitoring
- All-in-one hybrid
Growatt SPH 10000TL-HU
- 10,000W continuous, 10,000W surge
- 48V input
- 200A charger + transfer switch
- Built-in 22A MPPT controller
- 97% peak efficiency
- WiFi+RS485 monitoring
- All-in-one hybrid

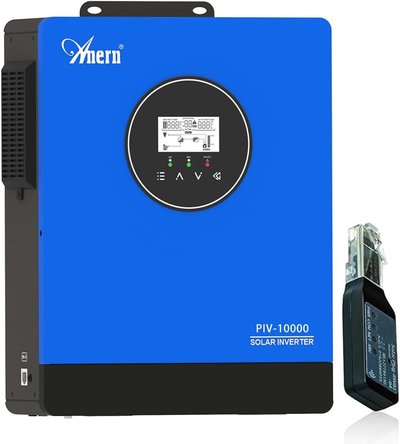

Anern 10KW PVI Solar Pump Inverter
- 10,000W continuous, 20,000W surge
- High Voltage input
- Built-in 54A MPPT controller
- All-in-one hybrid
Installation Tips
- Mount close to the battery: The DC cable from battery to inverter carries enormous current. A 2,000W inverter at 12V draws ~170A — keep cable under 3 feet and size appropriately (2/0 AWG or larger).
- Fuse close to the battery: Place a fuse or ANL fuse holder within 12–18 inches of the battery's positive terminal. For a 2,000W/12V inverter: use a 200A fuse.
- Ventilation: Inverters generate heat proportional to load. Never install in a sealed enclosure. Ensure at least 2–3 inches of clearance on all sides.
- Ground the chassis: Connect the inverter's chassis ground to the vehicle/building's chassis/earth ground to prevent electric shock hazards.
